S24 - Resources

---

Table of contents

1. Source Code
   1. Daisy Seed Source (C++)
   2. Libre (or RPi) Code (Python)
   3. Additional Info
2. PCB
   1. Schematics
   2. Gerber Files
   3. JLCPCB Production Files
   4. Images
3. Faceplate
   1. Design
   2. Different Finishes
4. Interface Controls and Parameters

---

Source Code

Daisy Seed Source (C++)

Download

Libre (or RPi) Code (Python)

Download

Additional Info

Download

---

PCB

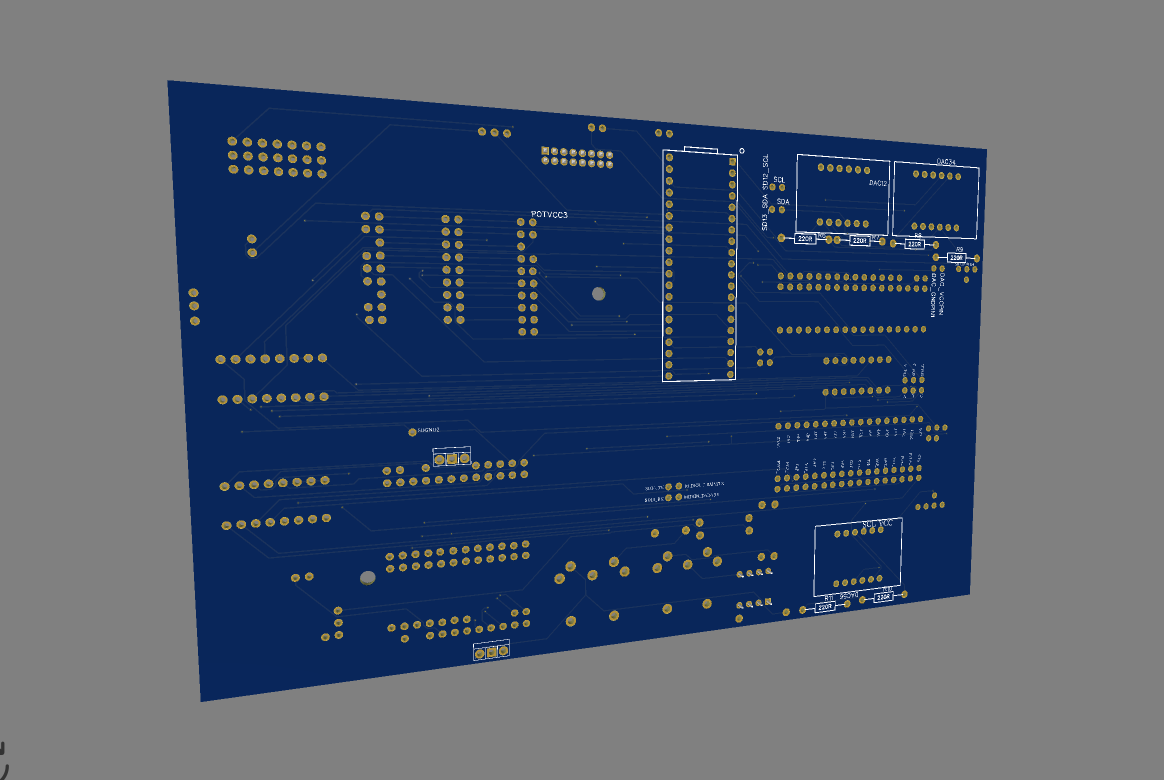

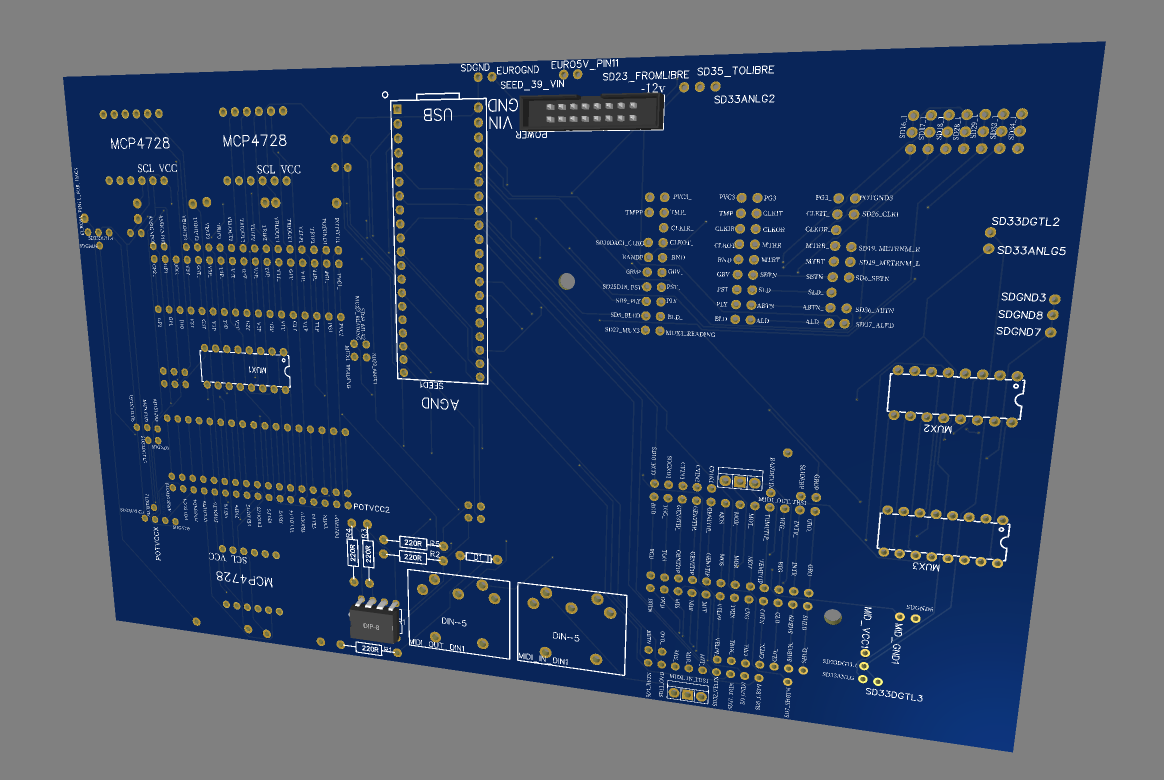

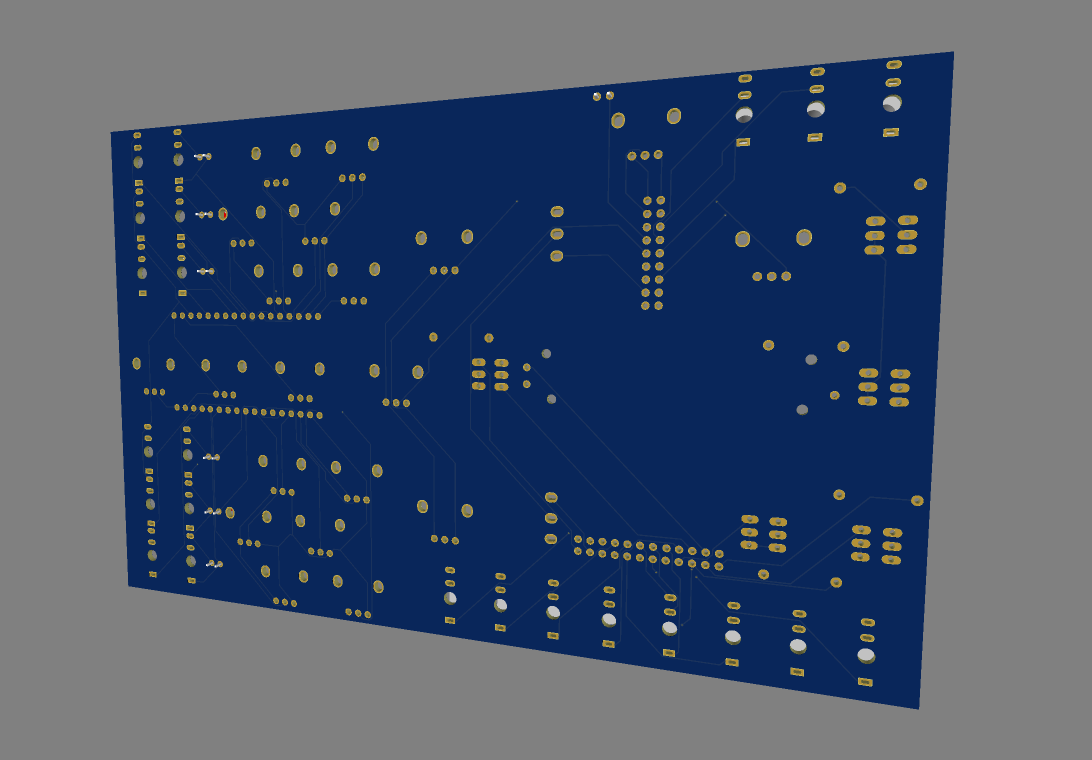

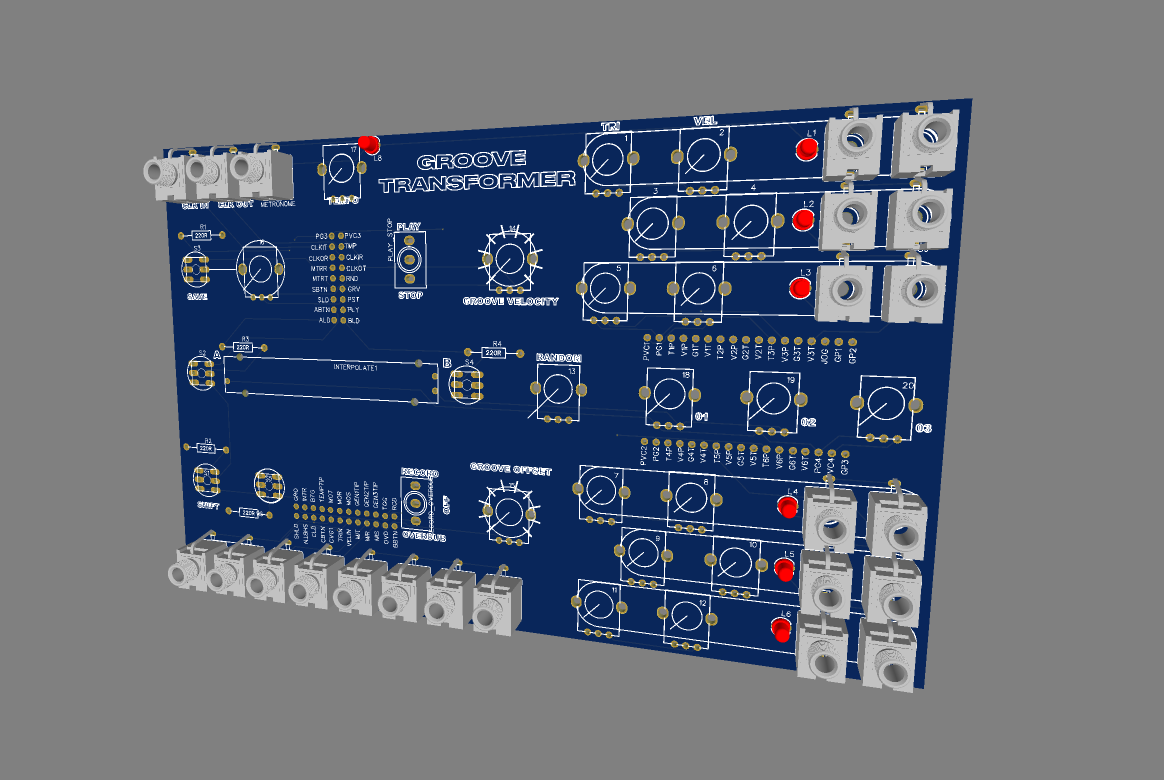

Schematics

Download: Front PCB

Download: Bottom PCB

Gerber Files

Download

JLCPCB Production Files

Download

Images

---

Faceplate

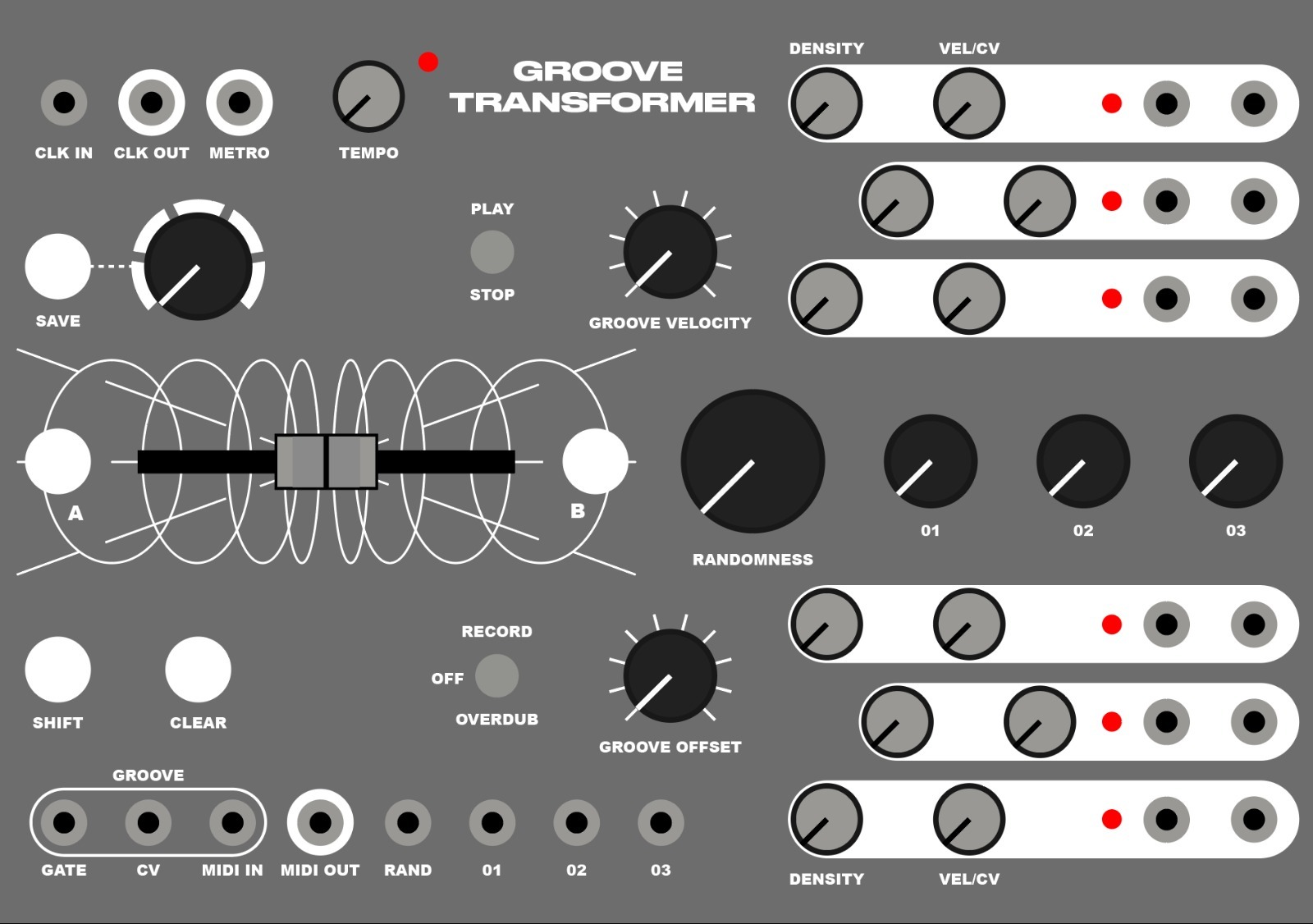

Design

Different Finishes

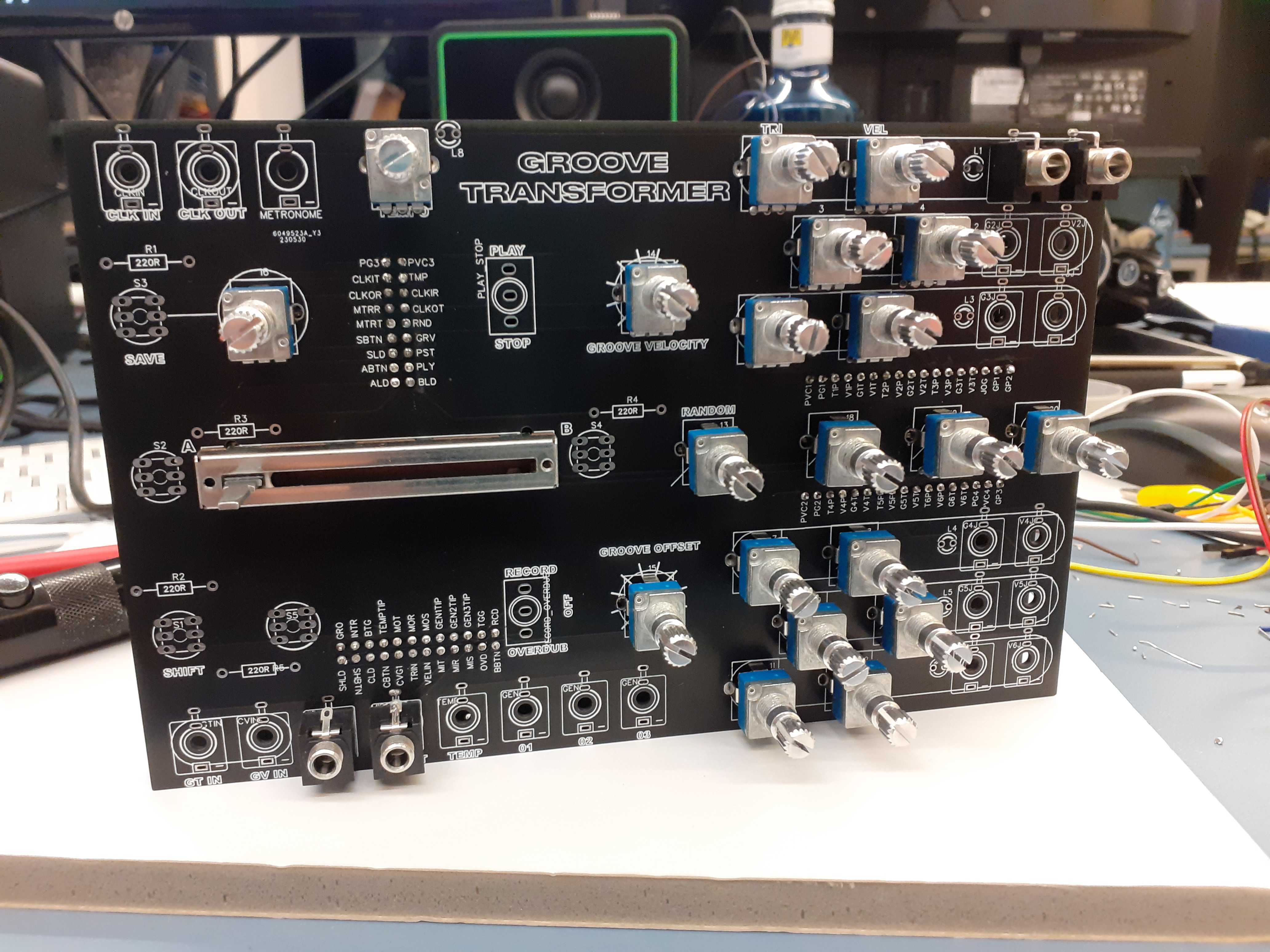

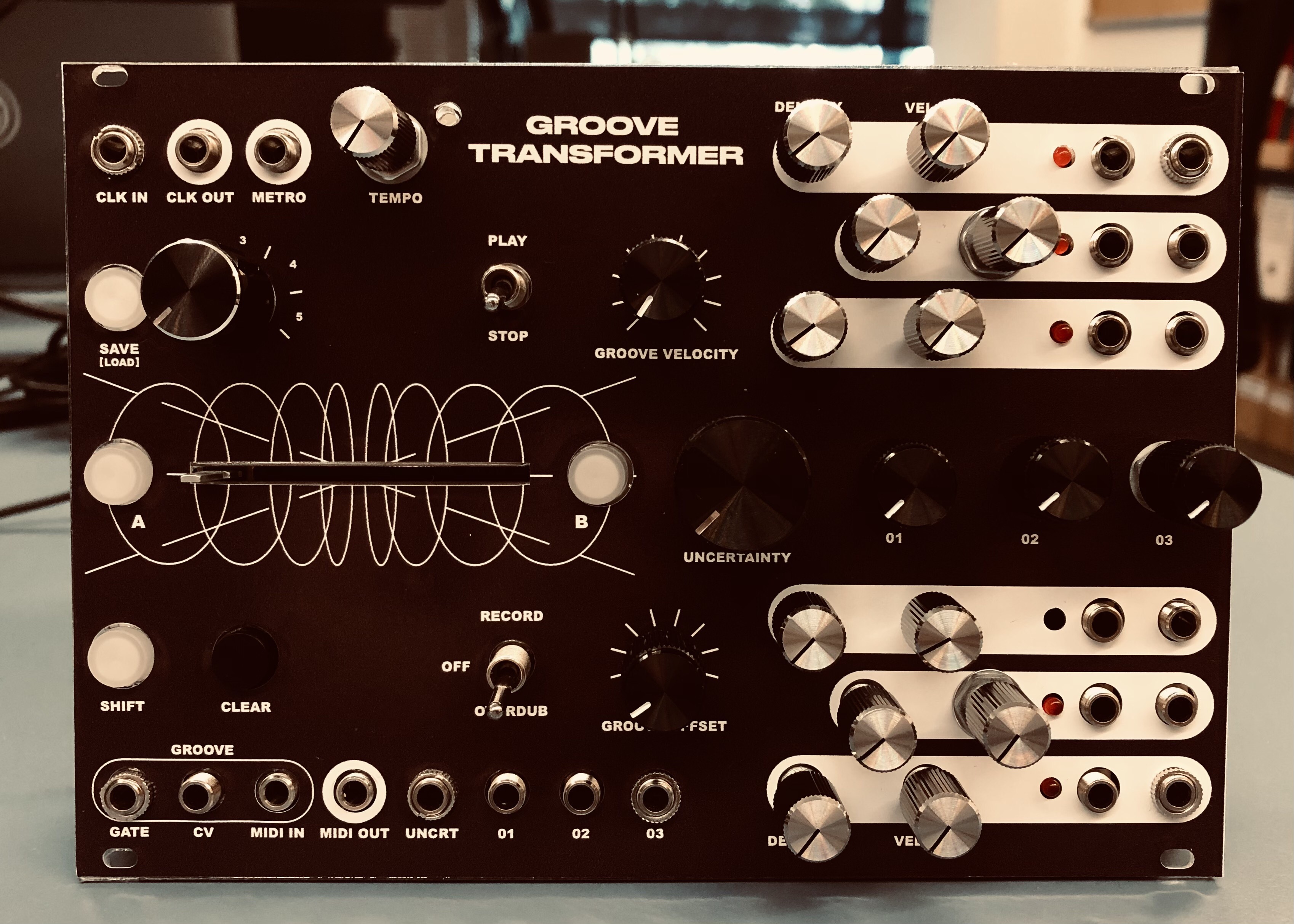

No Faceplate:

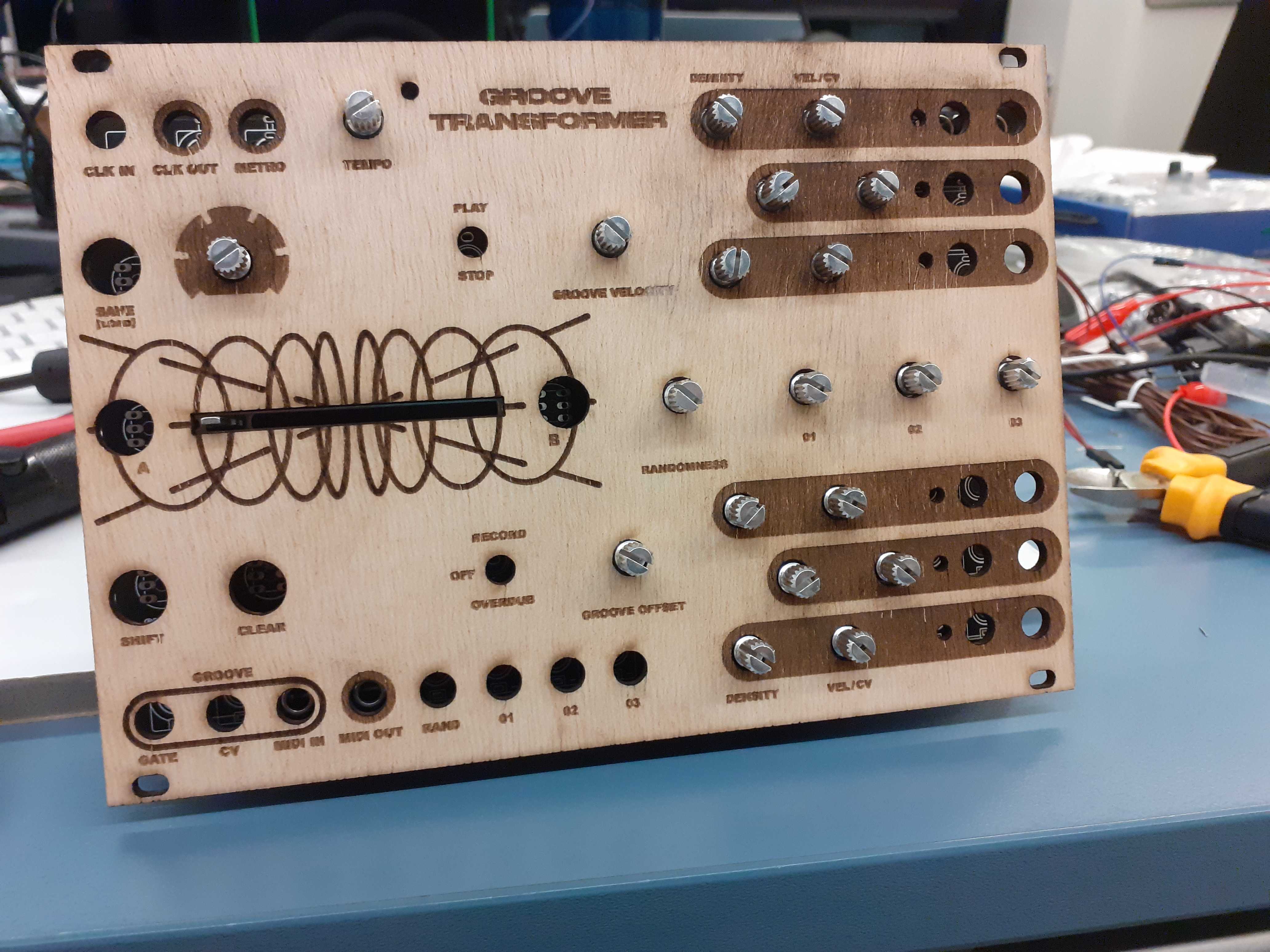

Laser Cut and Laser Etched Wood:

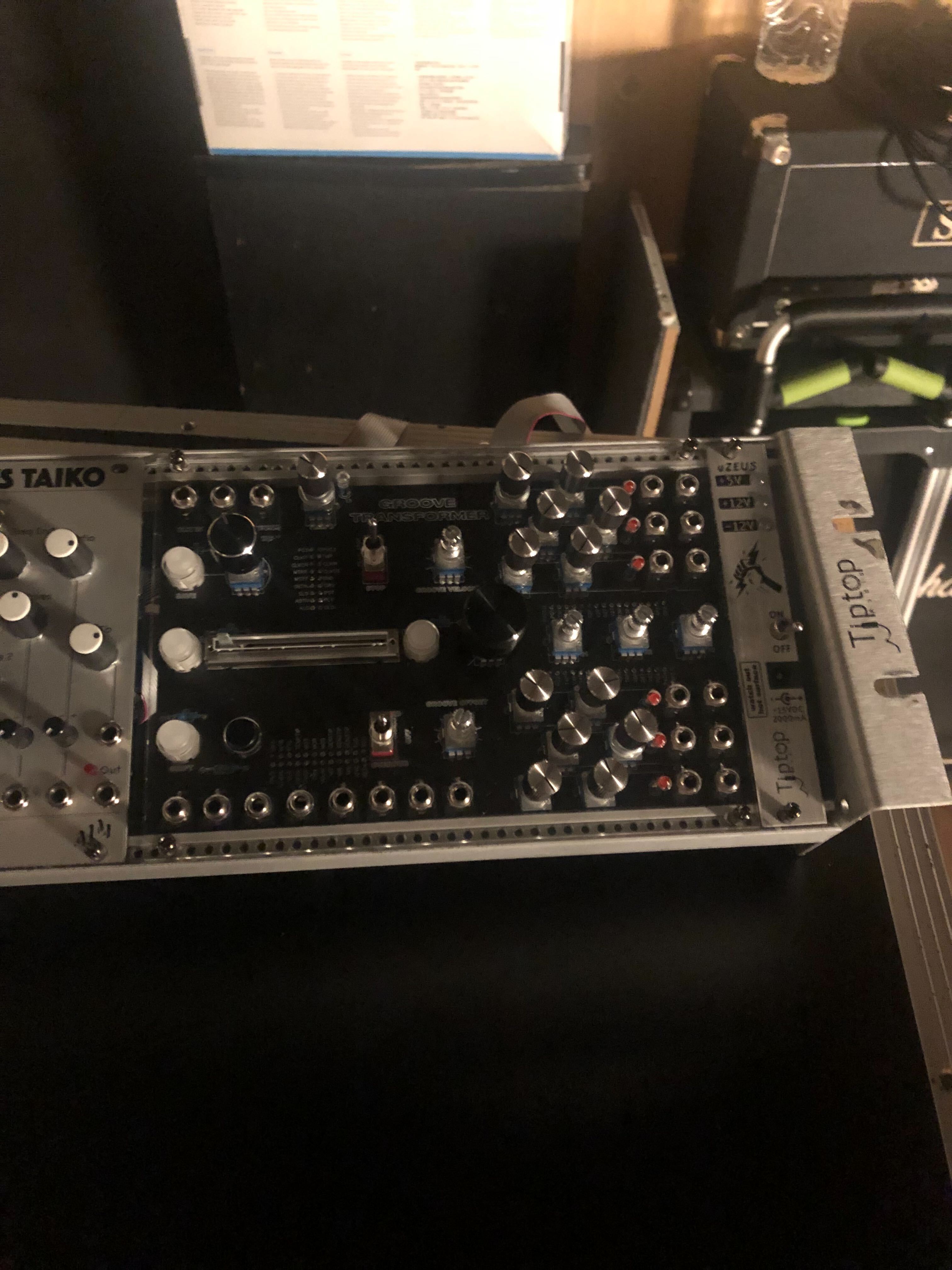

Glass:

Glass with Printed Sticker:

---

Interface Controls and Parameters

---

	Figure Index	Name	Description
Utility Parameters	1	Internal Clock Tempo Knob	Sets the internal clock tempo
	2	Internal Clock CV Output	CV clock output
	3	External Clock CV Input	Input for external CV clock source
	4	Metronome Click Output	Metronome click audio output
	5	Play/Stop Switch	Starts and stops the outputs and input groove record buffer
	6	Record/Overdub/Off Switch	Three-way switch to change the mode of the input groove record buffer
	7	Clear Button	Clears the input groove record buffer
	8	Shift Button	Enables secondary functions of other buttons
CV/MIDI Pattern Generation Output	9	CV Gate Voice Output	MIDI output and CV gate and velocity output for each voice
	10	CV Velocity Voice Output
	11	MIDI Output
Input Groove Control	12	Input Groove CV Gate Input	MIDI input and CV gate and velocity input for input groove
	13	Input Groove CV Velocity Input
	14	Input Groove MIDI Input
	15	Input Groove Velocity Knob	Quantizes the input groove to the grid and quantizes the velocity of each note
	16	Input Groove Offset Knob
Generation Control	17	Uncertainty Knob	Sets the value of the Uncertainty parameter
	18	Uncertainty CV Input	CV input for the Uncertainty parameter
	19	Voice Density Knob	Controls the number of hits in each sequence by adjusting the threshold of the model
	20	Voice Velocity Scale Knob	Scales the velocity output. At minimum value, no scaling is applied to the outputs. At maximum value, all velocities are scaled to the maximum value.
Latent Space Interpolation	21	Preset Selection Knob	Selects the preset number to be loaded or to be saved to. A preset consists of the saved states in the latent space Z_A and Z_B
	22	Preset Save/Load Button	Saves current states Z_A and Z_B to the selected preset number. Pressing with shift button loads the preset at the selected preset number
	23	Save/Randomize A and B Button	Sets the current state to be Z_A or Z_B in the latent space. Pressing with shift button generates a random placement for Z_A or Z_B in the latent space
	24	A/B Interpolation Slider	Interpolation position ( \alpha ) between states Z_A and Z_B in the latent space
	25	A/B Interpolation CV Input	CV input to automate the interpolation position ( \alpha ) in the latent space
	26	Follow Knob	Sets the value of the Follow parameter ( \beta ) in the latent space
	27	Follow CV Input	CV input to automate the Follow parameter ( \beta )
